Name: Johnson Controls D-4073-3 Damper Actuator, 5-10 PSI, Univ [New]
Brand: Johnson Controls
SKU: B2E-TRO-20732
Price: 519.87 USD
Availability: InStock

Description

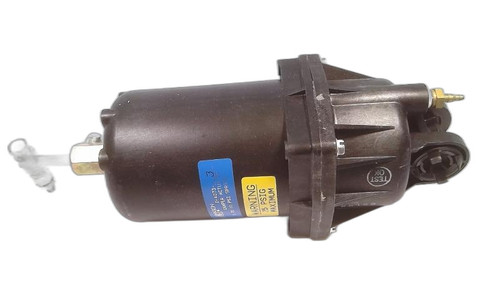

. . . . . The Johnson Controls D-4073-3 is a pneumatic piston damper actuator with a 5 to 10 psig nominal spring range, supplied complete with a universal mounting bracket.

The D-4073 is a multipurpose positioning device used to accurately position small dampers - primarily on unit ventilators, VAV boxes, terminal units and small ventilating dampers - in response to the output of a pneumatic controller or electro-pneumatic transducer. It is Johnson Controls' direct replacement for existing D-3073 actuators, and a functional replacement for former D-251 actuators.

The 5 to 10 psig spring range sits mid-scale in a typical 0 to 20 psig control system, which suits single-actuator applications and the lower or middle stage of a sequenced arrangement - the 8 to 13 psig D-4073-2 covers the upper band, so the two can be driven in succession from one thermostat output. Stroke is 3 in. (76 mm), control air is 0 to 20 psig for HVAC service with a 25 psig (175 kPa) maximum, and the actuator is rated for dampers up to 6.75 square feet for proportional volume control and 11.7 square feet for two-position actuation. Accessories share the D-3070/D-3073/D-3153/D-4070/D-4073 hardware range.

* Brand / Manufacturer: Johnson Controls
* Model / Part Number: D-4073-3
* Series: D-4073 / D-4000 Series pneumatic damper actuators
* Nominal Spring Range: 5 to 10 psig (35 to 70 kPa)
* Supplied With: Universal mounting bracket
* Stroke: 3 in. (76 mm)
* Control Air Pressure: 0 to 20 psig for HVAC; 25 psig (175 kPa) maximum
* Maximum Damper Area: 6.75 sq ft proportional, 11.7 sq ft two-position
* Replaces: D-3073 actuators (direct), D-251 actuators (functional)
* Related Models: D-4073-6 (5-10 psig, auxiliary bracket), D-4073-6002 (5-10 psig body only), D-4073-2 (8-13 psig, universal bracket)

Typical applications include unit ventilator, VAV box and terminal unit damper control, sequenced damper arrangements, and retrofitting obsolete D-3073 or D-251 pneumatic actuator installations.. Johnson Controls. Johnson Controls. D-4073-3.
