Description

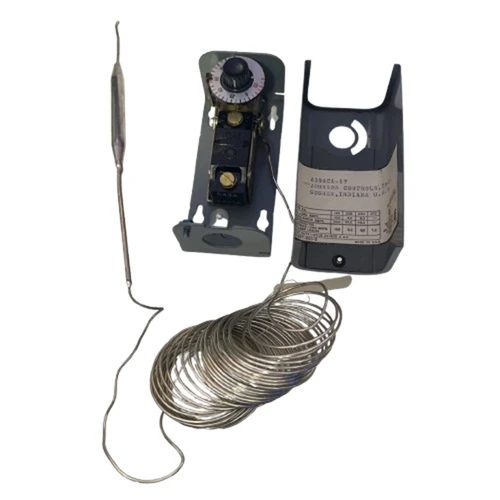

. . . . . The Johnson Controls A19ACA-17 is an A19 Series manual-reset low-limit temperature control with SPST open-low contacts, a range of -30 to 100°F, a 3/8 in. x 4 in. bulb and a 20 ft. capillary, in a NEMA 1 enclosure. Johnson Controls catalogues this as the A19ACA-17C.
Manual reset means the contacts open when temperature falls to setpoint and latch open until physically reset - the plant cannot restart on its own. That is the behaviour wanted from a freeze or low-limit device: the trip should be investigated, not cleared automatically. Because the control latches, there is no differential in the usual sense; the price list records "DIFF. NO" for this configuration.
The 20 ft. capillary is the longest Johnson Controls offers, and on a latching control that length is especially useful. A manual-reset device has to be reachable by a person, so being able to mount the head twenty feet from the bulb means the reset can sit outside a cold room, above a ceiling void, or at an accessible panel while the sensing element stays where the freeze risk actually is. The same control is catalogued with 6 ft. (A19ACA-14C) and 10 ft. (A19ACA-15C) capillaries.
Sensing is by a liquid-filled element whose repeat accuracy is unaffected by barometric pressure or cross-ambient conditions - important across a 20 ft. run passing through zones at different temperatures. Switching is by a Precision Pennswitch unit with snap-acting, dust-tight contacts. Manual-reset A19 ratings are 16.0 FLA / 96.0 LRA at 120 V, 9.2 / 55.2 at 208 V, 8.0 / 48.0 at 240 V, with a non-inductive rating of 16.0 A at 120 V (9.2 A at 208 V, 8.0 A at 240 V) and 125 VA pilot duty at 24 to 600 VAC.
* Brand / Manufacturer: Johnson Controls
* Model Number: A19ACA-17
* Catalogued As: A19ACA-17C
* Product Type: Manual-reset low-limit temperature control
* Switch Action: SPST, open low
* Reset: Manual (latching)
* Range: -30 to 100°F
* Bulb: 3/8 in. x 4 in.
* Capillary: 20 ft. - longest offered
* Enclosure: NEMA 1
* Motor Ratings: 16.0 FLA / 96.0 LRA at 120 V; 9.2 / 55.2 at 208 V; 8.0 / 48.0 at 240 V
* Non-Inductive: 16.0 A at 120 V; 9.2 A at 208 V; 8.0 A at 240 V
* Pilot Duty: 125 VA, 24 to 600 VAC
Route and support the full 20 ft. of capillary without kinks or tight bends - a damaged capillary disables the control, and on a freeze-protection device that failure is consequential. The bulb well used by the 6 ft. and 10 ft. versions of this control is WEL14A-602R, with a screwdriver-slot range adjuster and a 140°F maximum bulb temperature; confirm those apply to the 20 ft. version before ordering, as they are not published for it.. Johnson Controls. Johnson Controls. A19ACA-17.
