Description

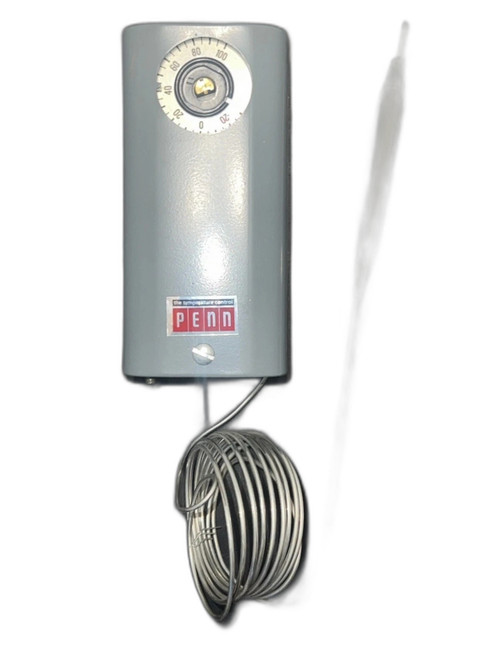

The Johnson Controls A19AAF-20 is an A19 Series close fixed-differential remote bulb control with SPDT contacts, a range of -30 to 100°F (-34 to 38°C) and a tight fixed differential of 2-1/2 F° (1.4 C°). Its current replacement designation is the A19AAF-20C.
Reaching -30°F while holding a 2.5-degree band is what defines this model's usefulness: freezer rooms, cold storage and low-temperature process work need both the sub-zero range and close control, and a wide-differential control would let the space drift too far. Sensing is by a liquid-filled 3/8 in. x 4 in. bulb on a 6 ft. capillary, with WEL14A-602R as the matching immersion well (ordered separately) and a screwdriver-slot range adjuster. Maximum bulb temperature is 140°F (60°C) at infrequent intervals.
The A19's liquid-filled element gives low-volume, responsive sensing, the mechanism holds a constant differential throughout the entire range, and repeat accuracy is unaffected by barometric pressure or cross-ambient conditions - which is precisely what a freezer application demands, since the control head is invariably mounted outside the cold space. On SPDT operation a rise above setpoint opens red-to-blue (R-B) as red-to-yellow (R-Y) closes, letting one control stop refrigeration and simultaneously start an alarm, fan or defrost function.
Close-differential electrical ratings apply: 6.0 FLA / 36.0 LRA at 120 V, 3.4 / 20.4 at 208 V, 3.0 / 18.0 at 240 V, with 10 A non-inductive at 24 to 277 VAC and 125 VA pilot duty at 24 to 277 VAC.
* Brand / Manufacturer: Johnson Controls (Penn)
* Model Number: A19AAF-20
* Replaced By: A19AAF-20C
* Switch Action: SPDT
* Range: -30 to 100°F (-34 to 38°C)
* Differential: 2-1/2 F° (1.4 C°) fixed, close differential
* Bulb and Capillary: 3/8 in. x 4 in. bulb, 6 ft. capillary
* Bulb Well: WEL14A-602R (order separately)
* Range Adjuster: Screwdriver slot
* Max. Bulb Temperature: 140°F (60°C)
* Motor Ratings: 6.0 FLA / 36.0 LRA at 120 V; 3.4 / 20.4 at 208 V; 3.0 / 18.0 at 240 V
* Non-Inductive: 10 A, 24 to 277 VAC
* Pilot Duty: 125 VA, 24 to 277 VAC
If an adjustable differential is wanted over the same span, the wide-range A19ABC-24C covers -30 to 100°F with a settable 3 to 12 F° differential, an 8 ft. capillary and a higher 22 A non-inductive rating - the trade-off being looser minimum control.. Johnson Controls. Johnson Controls. A19AAF-20.
