Description

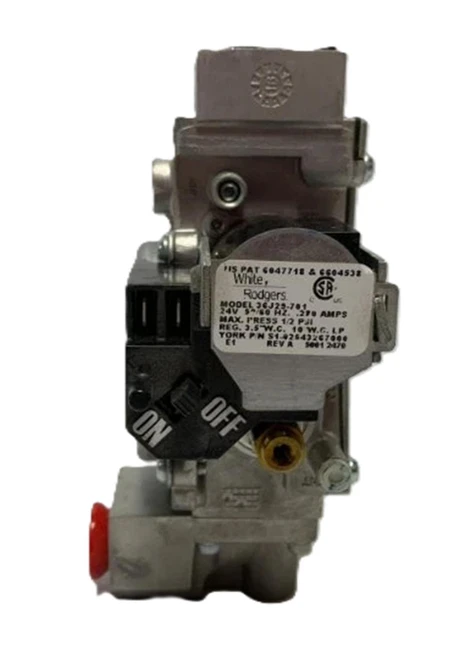

. . . . . The White-Rodgers 36J29-701 is a 36J-series HSI/DSI combination gas valve with a flange-mount inlet, 1/2" NPT, 24 VAC, natural or LP gas. Per White-Rodgers 36J nomenclature the 36J29 family uses the standard opening orifice (single-stage fast open); the flange mount configuration (White-Rodgers flange mount kit F27-0373 pattern) is used by OEMs that bolt the valve directly to the manifold. The versatile 36J series combination gas valves cover a wide range of applications. Designed for use with common ignition systems (HSI/DSI), it replaces hundreds of existing models in the field. The 36J valve is equipped with redundant and main solenoid valves that control gas flow to the main burners, a pressure regulator and a two-position on/off switch for regulation and electrical shut-off of the solenoid valves.
Features (per White-Rodgers 36J catalog):
* HSI/DSI
* Inlet/outlet screens
* Single Stage/Two-Stage
* Electric on-off switch
* Fast/Slow Opening
* Inlet/outlet pressure taps
* Convertible - natural or LP Gas
* CSA approved
* Adjustable regulator(s)
Specifications:
* Pipe Size: 1/2" x 1/2" NPT - 7XX suffix / flange-mount inlet - not in the standard 2XX/5XX/6XX coding table
* Stages / Opening: Single stage, standard (fast) opening orifice
* Electrical Rating: 0.28 amps (Single Stage)
* Voltage: 24 VAC, 50/60 Hz
* Operating Ambient Temperature: -40° to 175°F (-40° to 79°C)
* Pressure Rating (max.): 1/2 PSI (14.0" W.C.)
* 1" PD Capacity: Nat. Gas 140,000 BTU/HR; LP Gas 226,800 BTU/HR
* Regulator Adjustment Range: Nat. 2.5" to 5.0"; LP 7.0" to 12.0"
* Overall Dimensions: L 4.7" x W 2.4" x H 4.2"; Swing Radius 2.750"
Application: OEM HSI/DSI furnaces and appliances with flange-mounted gas valves (e.g., 36J29-201P1 manifold-mount type).
Brand: White-Rodgers (Emerson Electric Co. / Copeland)
Model / Part Number: 36J29-701
Product Type: Flange Mount Gas Valve 1/2 in NAT/LP
Condition: New
Note: Model-specific factory regulator setting and options for the -701 suffix were not located in OEM literature; verify against the valve label before publishing. 36J29 opening characteristic per White-Rodgers R-4275 nomenclature note 'A - Standard opening orifice'.. White-Rodgers. Emerson. 36J29-701.
