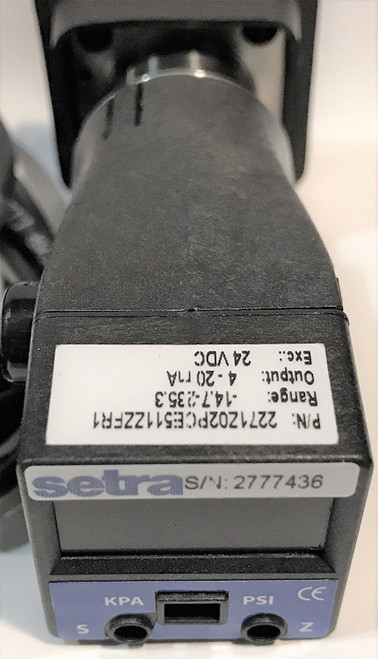

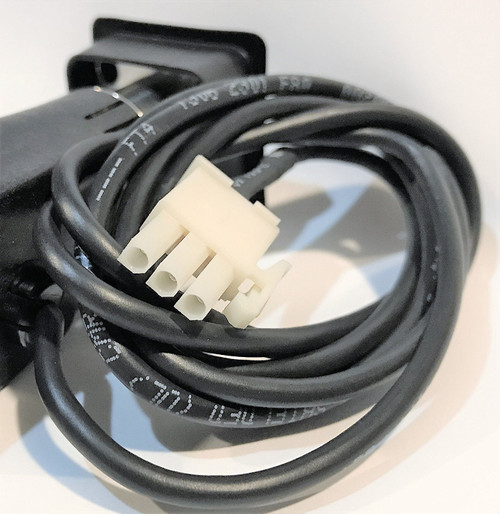

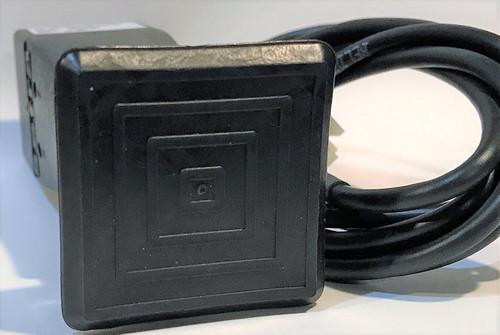

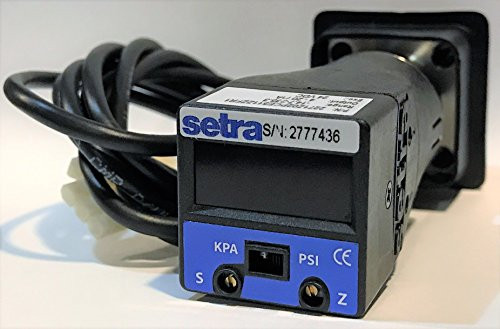

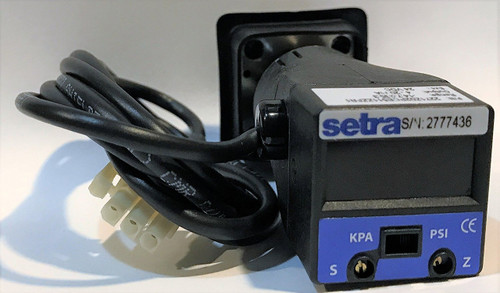

Setra 2271Z02PCE511ZZFR1 Model 227 Digital Pressure Transducer, Ultra High Pressure Sensor

$352.00
SKU:
00-MAU5-QRKJ
Condition:
New
Availability:
In Stock - Ships Immediately
Shipping:
Calculated at checkout
Current Stock:
22



Product Description

Series: 227. Range: 14.7 - 235.3. Output: 4-20 mA. Electrical Termination: 24 VDC. Superior Stability Avoid Down Time, EMI/RFI Immunity Prevents False Shutdown. NOTE: This product is packaged in ultra-high purity packaging, and should not be opened outside of cleanroom environment. Setra's Model 227 transducer is designed for high density, modular block gas sticks and panels required for today’s 300 mm tools. The Model 227s 1-1/8’’ footprint optimizes valuable space, and its rugged design makes it ideal for pressure measurements that require long-term stability, high accuracy and exceptional insensitivity to environmental extremes. Unlike many other designs with large deadended cavity volume, the 227 has a small swept sensor chamber for easy purgeability. All wetted parts are 316L VIM/VAR stainless steel passivated to 5 Ra (7 Ra. max.) fi nish, which eliminates surface irregularities and provides the proper surface chemistry for corrosion resistance, assuring contaminant-free gas distribution. Available wtih 5 VDC, 10 VDC, or 4 to 20 mA ouput, the Model 227 offers ±0.25% Full Scale or ±1.0% of Reading accuracy. The Model 227 comes with a space-saving1-1/8” C-Seal or W-Seal downmount interfacing base with choice of a multi-conductor cable, 4-pin bayonet connector, and 9 or 15 pin D-sub connector for electrical termination. When coupled with the Model 327 1–1/8’’ rotatable display, this package provides the ultimate in pressure measurement and display. Side access to the zero and span adjustments beneath the rotating protective cover, and choice of absolute, gauge or compound pressure ranges complete this unique design. Principle of Operation - Setra’s patented variable capacitance sensor features a 316L stainless steel diaphragm and an insulated electrode plate. A variable capacitor is formed between the sensor body and the electrode plate. An increase in pressure causes a slight rounding of the diaphragm, which decreases the capacitance. The capacitance change is detected and converted to a highly accurate linear DC electric signal by Setra’s unique custom integrated circuit, utilizing a patented charge balance principle. Setra. Setra. 2271Z02PCE511ZZFR1.

Warranty Information

B2E Surplus offers a 90-day warranty on all sales. Warranted to be free from defects in materials and workmanship under normal use and service. Unless otherwise set forth in a quotation or agreed to by B2E Surplus in writing, standard Products are warranted for 90 days from the date of delivery to the buyer.

Subject to the exclusions described below, all B2E Surplus products (“Products”) are warranted to be free from defects in materials and workmanship under normal use and service. Unless otherwise set forth in a quotation or agreed to by B2E Surplus in writing, standard Products are warranted for 90 days from the date of delivery to the buyer.

EXCLUSIVE REMEDY. In the event that B2E Surplus determines that a Product contains a defect in materials or workmanship, then B2E Surplus, in its sole discretion, will (a) repair the Product, (b) replace the Product, or (c) refund the purchase price of the Product. THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE REMEDY OF REPAIR, REPLACEMENT OR REFUND IS BUYER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. IN NO EVENT SHALL B2E SURPLUS’ LIABILITY UNDER THIS WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT GIVING RISE TO THE WARRANTY CLAIM. All Products which are repaired or replaced shall be warranted only for the unexpired portion of the original warranty period.

EXCLUSIONS. This warranty does not cover (a) any failures which are not attributable to defects in materials or workmanship, including without limitation, failures caused by accidents, inadequate maintenance, misuse, unauthorized modifications or repairs, improper storage, and normal wear and tear, (b) any consumable parts or accessories, such as cutter blades, nut splitter chisels, punches, dies, chains, wedges, and strands, that are designed to wear over time or through use of the Product, or (c) electronics, motors, batteries, and engines, as these items are warranted by their manufacturer.

WARRANTY RETURNS. No Products shall be returned without prior authorization from B2E Surplus. Buyer shall prepay all shipping charges for the return of Products to B2E Surplus’ designated service location.

LIMITATION OF LIABILITY. IN NO EVENT SHALL B2E SURPLUS BE LIABLE FOR ANY INCIDENTAL DAMAGES, CONSEQUENTIAL DAMAGES, SPECIAL DAMAGES, INDIRECT DAMAGES, LOSS OF PROFITS, LOSS OF REVENUES, OR LOSS OF USE, EVEN IF INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. B2E SURPLUS' LIABILITY FOR DAMAGES ARISING OUT OF OR RELATED TO ANY ORDER IS LIMITED TO THE ORDER PRICE FOR THE SPECIFIC PRODUCT THAT GIVES RISE TO THE CLAIM. TO THE EXTENT PERMITTED BY APPLICABLE LAW, THESE LIMITATIONS AND EXCLUSIONS SHALL APPLY REGARDLESS OF WHETHER LIABILITY ARISES FROM BREACH OF CONTRACT, WARRANTY, TORT (INCLUDING BUT NOT LIMITED TO NEGLIGENCE), BY OPERATION OR LAW, OR OTHERWISE.
