Description
. . . . . The Johnson Controls T26T-6C is a line voltage wall thermostat from the PENN T26 Series. Per the OEM ordering table, the T26T product code is a "Thermostat, SPDT, Heavy Duty Heating, Cooling, or Heating and Cooling," making it the heavy-duty double-throw model in the family.
The T26 Series line voltage thermostat controls heating and/or cooling units in commercial, industrial, or residential installations. Typical uses are for unit heaters, fan coils, blast coils, electric heat, duct furnaces, or greenhouses. The thermostat consists of a liquid filled sensing element, which has excellent sensitivity to surrounding air temperature changes. Coupled with a highly efficient diaphragm and lever mechanism, the element operates an enclosed narrow differential Pennswitch. No anticipators are required.
An adjusting knob and easy-to-read dial allow quick selection of the desired setpoint, and adjustable high and low range stops allow adjustments within a desired range or can be set to lock the dial. The T26 has a thermoplastic cover with an Allen-head locking screw to discourage unauthorized tampering. The unit ships with the faceplate installed for vertical mounting; a horizontal faceplate is enclosed for horizontal mounting if desired. A mounting plate allows easy mounting and wiring without removing the cover, and line voltage components are switch box mounted for isolation of the electrical circuit from the sensing element.
* Brand / Manufacturer: Johnson Controls (PENN)
* Model Number: T26T-6C
* Series: T26 Series Line Voltage Thermostats
* Type: Line voltage wall thermostat, heavy duty heating, cooling, or heating and cooling
* Switch Action: SPDT, snap-acting contacts in a dust-protected enclosure
* Measurement Range: Thermostat 40 to 90°F (4 to 32°C); thermometer 50 to 90°F (10 to 32°C)
* Mechanical Differential: Approximately 0.7°F (0.4°C)
* Ambient Operating Temperature: 0 to 105°F (-18 to 46°C)
* Sensing Element: Liquid filled
* Thermometer: Bi-metal type
* Heating Side Ratings: 16.0 A full load / 96.0 A locked rotor at 120 V; 8.0 A / 48.0 A at 240 V; 22.0 A non-inductive at 120 to 277 V
* Cooling Side Ratings: 8.0 A full load / 48.0 A locked rotor at 120, 208 and 240 V
* Pilot Duty: 125 VA, 24 to 277 VAC
* Mounting: Vertical or horizontal 2 x 4 in. (51 x 102 mm) wall box

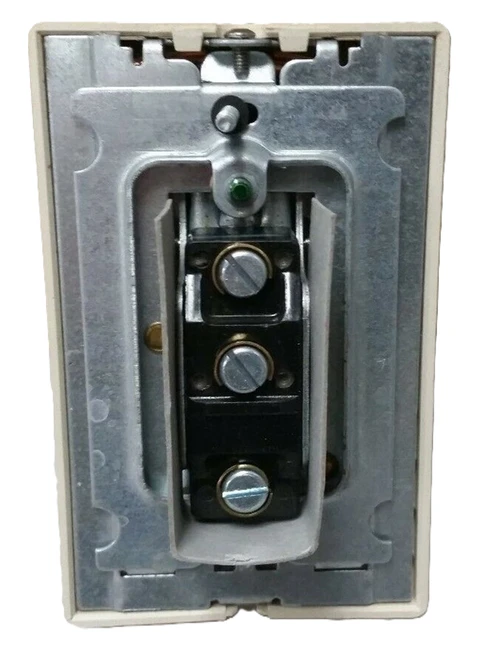

* Wiring Terminals: Large 8-32 x 1/4 in. binder head screws
* Material / Finish: 0.050 in. (1.27 mm) cold rolled steel base, zinc plate dichromate dipped; beige thermoplastic cover
* Dimensions (H x W x D): 4.71 x 2.96 x 2.87 in. (120 x 75 x 73 mm)
* Shipping Weight: 1.0 lb (0.45 kg)
* Agency Listings: UL Guide No. XAPX, File E6688; CSA Class No. 4813 02, File LR948
Note: All T26 Series thermostats are designed for use only as operating controls. Where an operating control failure would result in personal injury and/or loss of property, it is the responsibility of the installer to add devices (safety, limit controls) or systems (alarm, supervisory systems) that protect against, or warn of, control failure.. Johnson Controls. Johnson Controls. T26T-6C.
