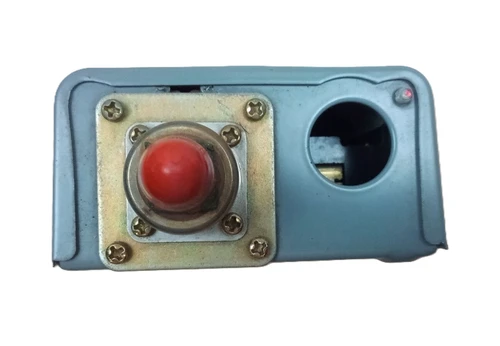

Name: Johnson Controls P70JA-44 Pressure Control, 2-Circuit High [New]
Brand: Johnson Controls
SKU: B2E-TRO-35046
Price: 167.4 USD
Availability: InStock

Description

. . . . . The Johnson Controls P70JA-44 is a PENN P70 Series pressure control, used for high-side pressure control on commercial refrigeration and air conditioning applications, in an ammonia-compatible configuration. Per the manufacturer, the P70, P72 and P170 controls for high pressure applications "are designed primarily for high pressure cut-out control, head-pressure control, and condenser fan cycling control on commercial refrigeration and air conditioning applications. Controls are available in several pressure ranges and are compatible with most common refrigerants. You can also use the controls on other non-corrosive fluid applications. Ammonia compatible models are also available."

Models with single-pole, double-throw (SPDT) or four-wire, two-circuit switch action allow users to install alarm devices or other control circuits. A pressure-actuated bellows on the control is connected to a pressure tap on the controlled system by a capillary or a field-installed hose; the bellows responds to system pressure changes and operates a snap-action electrical switch. The all-steel case and cover provide long lasting, rugged protection for internal components, and sight-set calibrated pressure adjustment displays a visible pressure scale on Type 1 (NEMA 1) enclosure models that is fully adjustable through the range without removing the cover.

* Brand / Manufacturer: Johnson Controls (PENN)
* Model / Part Number: P70JA-44
* Series: P70 Series pressure control (high pressure applications)
* Switch Action: Four-wire, two-circuit switch (1 N.O., 1 N.C.), main switch open-high, automatic reset - on a pressure fall the main contact closes M2 to line and opens M1 to line; on a pressure rise it opens M2 to line and closes M1 to line
* Enclosure: Type 1 (NEMA 1), no adjustment knob
* Range / Differential / Pressure Connection / Pressure Ratings: Not published by Johnson Controls for this dash number - the selection charts do not itemise it. Verify the range, differential, connection style and pressure ratings on the control nameplate before ordering
* Electrical Ratings (four-wire two-circuit, cULus): Line to M2 (main contact) - 120 VAC 16.0 FLA / 96.0 LRA, 208 VAC 9.2 / 55.2, 240 VAC 8.0 / 48.0, 480 VAC 5.0 / 30.0, 600 VAC 4.8 / 28.8. Line to M1 (auxiliary contacts) - 120 VAC 6.0 FLA / 36.0 LRA, 208 VAC 3.3 / 19.8, 240 VAC 3.0 / 18.0. Pilot duty 125 VA at 24 to 600 VAC, 20 VA at 120 to 300 VDC
* Ambient Temperature: -40 to 140°F (-40 to 60°C); P70E models 50 to 104°F (10 to 40°C)
* Construction: Galvanized steel case; plated and painted steel cover
* Dimensions (H x W x D): 3-1/4 x 4 x 2-1/16 in. (83 x 101 x 53 mm) with Type 1 (NEMA) enclosure
* Shipping Weight: 2.4 lb (1.08 kg), individual pack
* Compliance: cULus Listed, UL 60730; Controllers, Refrigeration - SDFY.SA516 (U.S.) / SDFY7.SA516 (Canada)
* Accessories: BKT38A-600R L-shaped horizontal mounting bracket; BKT40A-600R vertical mounting bracket

Use copper conductors only and make all wiring connections in accordance with local and national electrical codes. Except for models listed as refrigeration pressure cut out controls, use this control only as an operating control - where failure or malfunction could lead to personal injury or property damage, incorporate additional supervisory, alarm, safety or limit devices into the control system. Do not make field repairs; contact a Johnson Controls/PENN authorized representative for replacement.. Johnson Controls. Johnson Controls. P70JA-44.
