Description

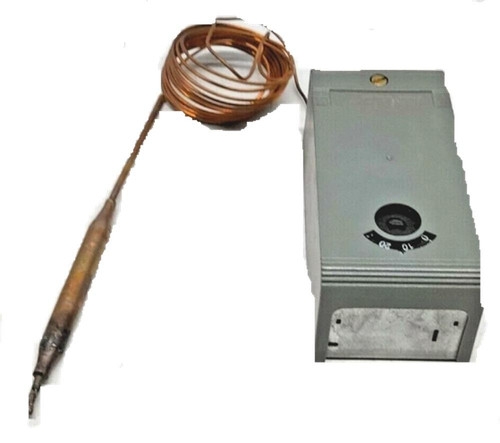

. . . . . The Johnson Controls A19AAC-13C is an A19 Series remote bulb temperature control with SPDT contacts, a range of 40 to 120°C (approximately 104 to 248°F), a fixed differential of 6, a 3/8 in. x 3-1/2 in. bulb on a 6 ft. capillary, in a NEMA 1 enclosure. The range is published in Celsius, marking this as one of the metric-specified members of the A19 family alongside models such as the A19AAF-44C.
A 40-120°C span is hot-water and process-heat territory - boiler circuits, heated storage tanks, wash and sterilising water, jacketed process vessels. The SPDT contact arrangement means a temperature rise above setpoint opens the red-to-blue (R-B) circuit and simultaneously closes red-to-yellow (R-Y), so one control can shut down the heat source and at the same time energise an alarm, indicator or interlock - worthwhile at these temperatures where an overtemperature event needs annunciating, not just stopping.
Sensing is by a liquid-filled element giving low-volume, responsive action, with precision repeat accuracy unaffected by barometric pressure or cross-ambient conditions so a hot control body does not bias the reading. Switching is by a Precision Pennswitch unit with snap-acting, dust-tight contacts, and a built-in high cutout stop is integral and field-adjustable. A19AAC electrical ratings are 16.0 FLA / 96.0 LRA at 120 V, 9.2 / 55.2 at 208 V, 8.0 / 48.0 at 240 V, with 22 A non-inductive at 120 to 277 VAC (SPDT normally-closed contact 16 A) and 125 VA pilot duty at 24 to 600 VAC; hot-water variants of this type carry a lower 10.0 FLA / 120 V, 6.0 / 240 V rating.
* Brand / Manufacturer: Johnson Controls
* Model Number: A19AAC-13C
* Switch Action: SPDT
* Range: 40 to 120°C (approx. 104 to 248°F)
* Differential: 6, fixed
* Bulb: 3/8 in. x 3-1/2 in.
* Capillary: 6 ft.
* Enclosure: NEMA 1
* Element Fill: Liquid
* Motor Ratings: 16.0 FLA / 96.0 LRA at 120 V; 9.2 / 55.2 at 208 V; 8.0 / 48.0 at 240 V
* Non-Inductive: 22 A, 120 to 277 VAC (SPDT N.C. contact 16 A)
* Pilot Duty: 125 VA, 24 to 600 VAC
NEMA 1 is an indoor general-purpose enclosure with no water-ingress protection - mount the head in a dry location and run only the capillary and bulb into the wet or hot area. For immersion, the series uses WEL14A-series bulb wells; the FTG13A-600R packing nut is limited to +250°F (121°C), which is close to this control's upper range, so check the fitting choice carefully.. Johnson Controls. Johnson Controls. A19AAC-13C.
