Description

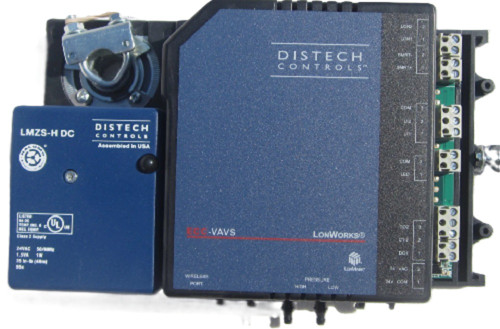

The Distech CDIP-VAXX-00-04 ECP-VAV is a free-programmable variable air volume unit controller for HVAC applications. It combines 4 universal inputs, 4 triac outputs for PWM or digital operation, and 2 universal outputs supporting 10 V, PWM, or digital 12 V operation.
A built-in brushless constant-torque damper actuator provides damper control, while integrated position feedback eliminates the need for periodic damper reinitialization. The controller also includes an accurate onboard airflow sensor for pressure-independent single-duct VAV applications.
Programming is supported through an LNS plug-in or EC-Net wizard in the Niagara Framework. Available programming functions include PID loops, timers, and optimum start, with fan-in binding support for zoning applications.
Flash memory retains application settings and control sequences and stores up to 12,000 events. The ECP-VAV provides 60 network variables, including 18 NVI and 18 NVO variables with changeable type and length, along with dedicated network variables for monitoring and changing internal data points. High-precision control is supported by 16-bit analog-to-digital inputs and 10-bit digital-to-analog outputs.
- Free-programmable VAV unit controller
- 4 universal inputs
- 4 triac outputs for PWM or digital operation
- 2 universal outputs for 10 V, PWM, or digital 12 V operation
- Built-in brushless constant-torque damper actuator
- Integrated damper position feedback
- Onboard airflow sensor for pressure-independent single-duct VAV applications
- Flash memory stores settings, control sequences, and up to 12,000 events
- Supports programming through LNS plug-in or EC-Net wizard
