Description

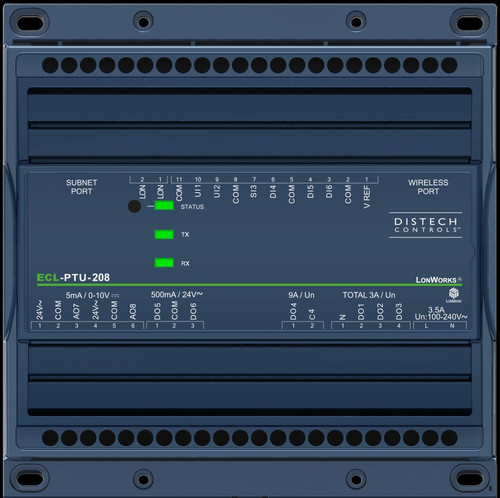

The refurbished Distech ECL-PTU-208 is a LonMark certified programmable room controller for terminal applications. It is used with systems such as fan coil units and chilled ceilings, providing room-level control in a compact controller format.
The controller accepts a universal 100–240 VAC power supply input and provides a 24 VAC power supply output. Its input arrangement includes 3 digital inputs, 2 universal inputs, and 1 sensor input for an NTC sensor.
For controlled equipment, the ECL-PTU-208 includes 3 digital outputs for fan control using 230 VAC relays, 1 digital output for an electric heater using a 255 VAC relay, and 2 digital outputs for valves using 24 VAC triacs. Two analog outputs are also included.
The ECL-PTU-208 supports ECx-Light and ECx-Blind lights and blinds control modules, extending its role beyond core terminal-unit control. This Distech Controls room controller is identified by part number CDIL-PTU208XXX-00.
- Refurbished ECL-PTU-208 programmable room controller
- LonMark certified
- For fan coil, chilled ceiling, and other terminal applications
- Universal 100–240 VAC power supply input
- 3 digital inputs, 2 universal inputs, and 1 NTC sensor input
- Fan, electric-heater, valve, and analog outputs
- 24 VAC power supply output
- Supports ECx-Light and ECx-Blind control modules
