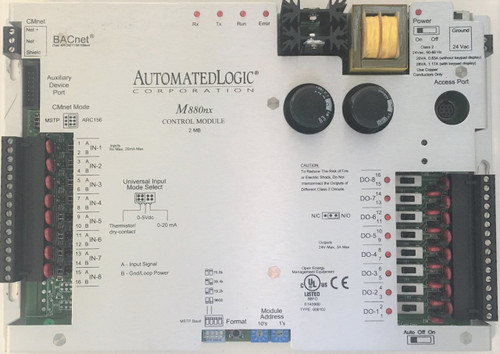

Digital Outputs: 8. Universal Inputs: 8. Analog Outputs: 0. Dimensions: 11-5/16" Width x 7-1/2" Height, 287mm x 190mm. Recommended Panel Depth: 2-3/4", 70 mm. M line (multi-equipment application) controllers are part of the Automated Logic Corporation native BACnet system, which also includes S line (single-equipment application) and U line (unitary-equipment application) control modules. M line controllers are ideal for multi-equipment applications in commercial environments. These robust standalone controllers utilize native BACnet communications over a high-speed ARCNET 156 Kbps network to ensure superior performance. Multi-equipment capabilities support general HVAC applications including complex central plants. Native BACnet communication over a high speed ARCNET 156 Kbps network. Graphical programming for universally understood and self documenting control sequences. Tough construction delivers superior performance and reliability in the field. Removable screw terminal strips simplify maintenance. Modular expandable design, configurable up to 192 points for scalable control solutions. Integral support for the BACview interface display unit - enhances local. 32-bit microprocessor and ARCNET communications co-processor. The M line series of expandable and non-expandable controllers are ideal for all types of facilities management applications. The expandable controllers are offered in I/O configurations that easily scale up to 192 points. This flexible design lets you add point types incrementally and size control panels to match system requirements. Intelligent features include on-board expansion connectors for additional I/O capacity and removable screw terminal strips to simplify installation and maintenance. With powerful 32-bit microprocessor technology, high-resolution inputs and outputs, and pneumatic outputs, M line control modules are a perfect match for the most complex control environments. Support for EIKON graphical programming also provides an unmatched capability to engineer complex control sequences, verify performance, and generate instant documentation all without special programming expertise. Add in the advantage of the BACview local operator interface and you see why M line control modules provide an industry-leading combination of capability, performance, and value. With flexible I/O point configurations, M line is designed to cost effectively fit a variety of commercial control applications. Module circuit boards are protected by a rugged aluminum cover, which serves as a ground plane and provides optimum electrical protection and noise immunity.. Automated Logic. Automated Logic Corporation. MX880.
