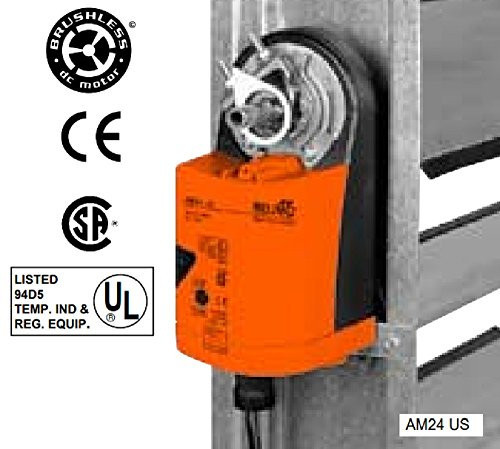

Power supply 24 VAC ± 20% 50/60 Hz 24 VDC ± 10%. Power Consumption: 2.5 W. Transformer Sizing: 4.5 VA (Class 2 power source). Electrical Connection: 3 ft, 18 GA, appliance cable, 1/2†conduit connector. Made in Switzerland. Belimo AM24 US Damper Actuator, On-Off Floating Point Control, Non-Spring Return, Direct Coupled, 24V - APPLICATIONS: For on-off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturerÂ's specifications. The actuator is mounted directly to a damper shaft up to 3/4Â" in diameter by means of its universal clamp, or up to a 1.05Â" jackshaft with the optional K4-1 clamp. A crankarm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. OPERATIONS: The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The angle of rotation is mechanically limited to 95°. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover. The position of the actuator is indicated by a visual pointer. The anti-rotation strap supplied with the actuator will prevent lateral movement. The AM24-S US version is provided with two built-in auxiliary switches. These SPDT switches are provided for safety interfacing or signaling. The switching function is adjustable between 0 and 95°. SPECIFICATIONS: Overload protection electronic throughout 0 to 95° rotation. Angle of rotation 0-95° adjustable stops. Torque min 160 in-lb [18 Nm]. Direction of rotation reversible with switch Â"CCW-CWÂ". Position indication clip-on indicator. Running time 110 to 150 sec. for 0 to 160 in-lb. Manual override external push button. Humidity 5 to 95% RH, non-condensing. Ambient temperature -22°F to +122°F [-30°C to +50°C]. Storage temperature -40°F to +176°F [-40°C to +80°C]. Housing type NEMA 2 (IP54 with cable entry down). Housing material rating UL94-5V (flammability rating). Noise level less than 45 dB (A). Servicing maintenance free. Agency listings UL 873 listed, CSA C22.2 No.24 certified, CE. Quality standard ISO 9001. Weight 2.8 lbs [1.3 kg].. Belimo. Belimo. AM24 US.
