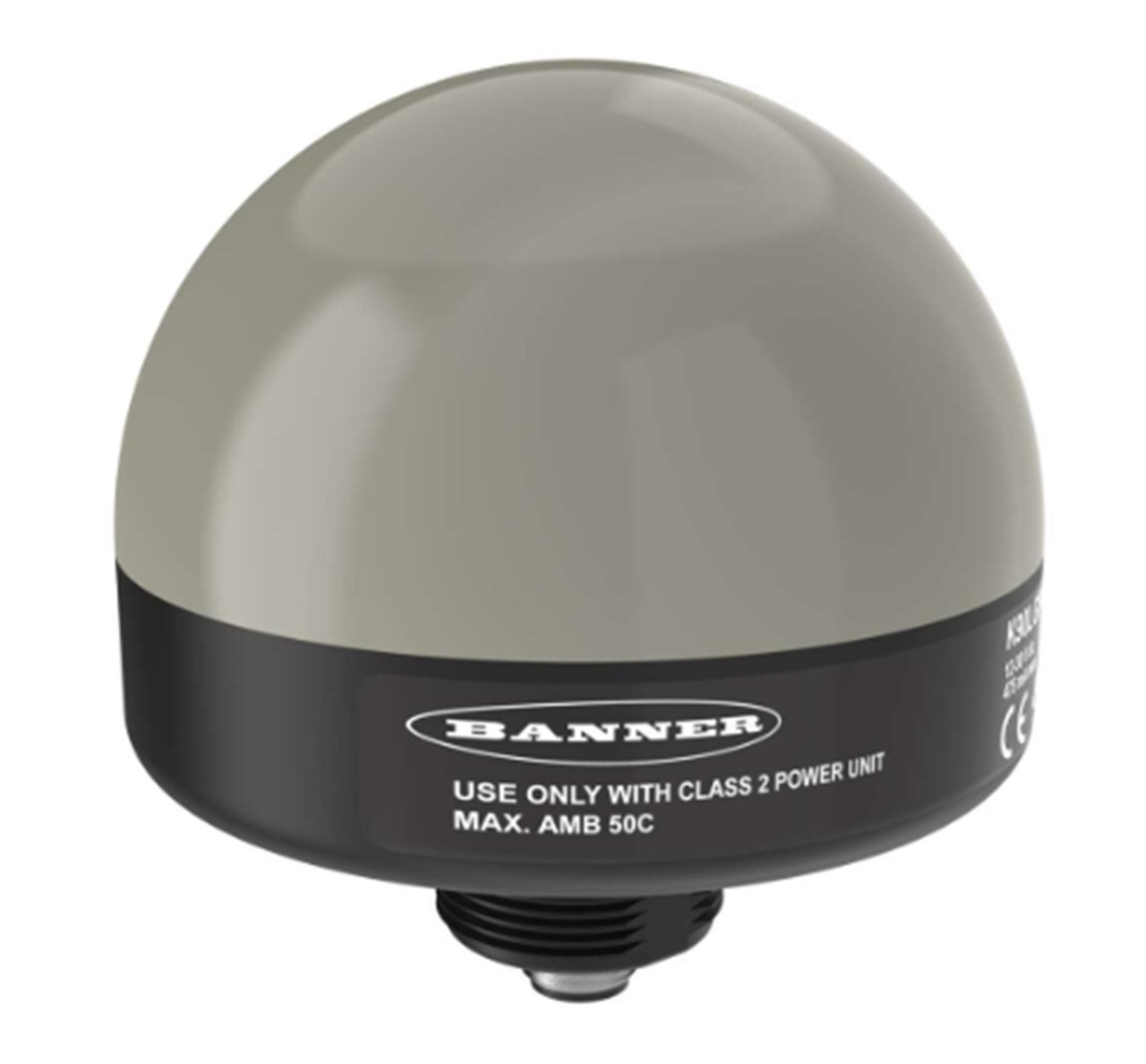

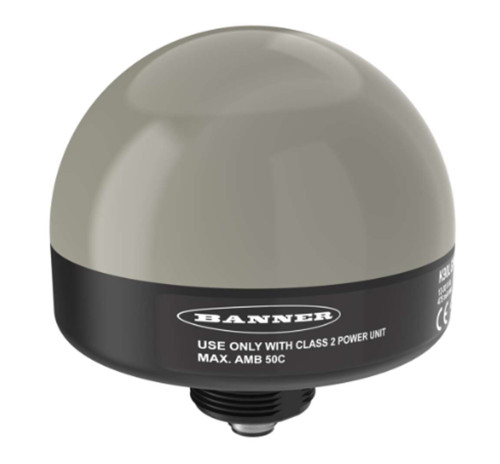

  • Banner K90TLBGYRPQ 92835 K90T Series EZ-Light, 4-Color Indicator, 12-30 V dc [New]

    • Banner K90TLBGYRPQ 92835 K90T Series EZ-Light, 4-Color Indicator, 12-30 V dc [New]

    Banner

    $177.10
    Write a Review
    SKU:
    B2E-TRO-11077
    Availability:
    In Stock - Ships Immediately
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement

    Product Description

    . . . . . K90T Series EZ-LIGHT; 4-Color Indicator
    Voltage: 12-30 V dc; Environmental Rating: IP67
    Input: PNP; Colors: Blue Green Yellow Red
    5-pin M12 Integral QD
    Part Number: 92835

    Power DC
    IP Rating IP67
    Display No
    NEMA / UL Type Rating NEMA 4X, 13
    Supply Voltage 12-30 V dc
    Housing Style Base Mount - Dome Window
    Primary Housing Material Polycarbonate
    Indication Yes
    Mounting Thread M30 x 1.5
    Color Input Control Individual (One wire/color, same number of colors as input wires)
    Number of Colors 4
    Product Size (mm) 90
    Color Technology Standard LED
    Color Option 1 Blue
    Animation Option 1 Solid On
    Connection Integral QD
    Lumens Color 1 55.0
    Quick Disconnect Type M12
    Color 1 - Wavelength/Color Temp/Coordinates 470 nm
    Color Option 2 Green
    Lumens Color 2 150
    Color 2 - Wavelength/Color Temp/Coordinates 525 nm
    Color Option 3 Yellow
    Lumens Color 3 35.0
    Color 3 - Wavelength/Color Temp/Coordinates 590 nm
    Color Option 4 Red
    Lumens Color 4 65.0
    Color 4 - Wavelength/Color Temp/Coordinates 625 nm
    Max Current Color (mA) 475
    Wire Selectable Function Multi-Function
    Number of Input Pins/Conductors 5
    Input Type PNP
    Max Input Response Time (ms) 150
    Physical Dimensions (LxWxH or DxH mm) 90.0 x 87.0
    Environmental Rating IP67
    High Temperature (up to 100° C) 50
    Min Op. Temperature (°C) -40
    Primary Window Material Polycarbonate Diffused
    Feature: Audible No
    Multi-Color Device Single Color On - Alternating
    Feature: Quick Disconnect Yes
    EPLAN Status Published
    EPLAN Original Sent Date 10/27/2022. Banner. Banner Engineering. K90TLBGYRPQ.
